Jet Mud Mixer
Enhance drilling operations with the Jet Mud Mixer. It mixes barite or bentonite into drilling fluids, adjusting mud density and viscosity. The Single Jet Mud Mixer includes a centrifugal pump, a mixing hopper, and an electrical control panel. The Double Jet Mud Mixer features double pumps

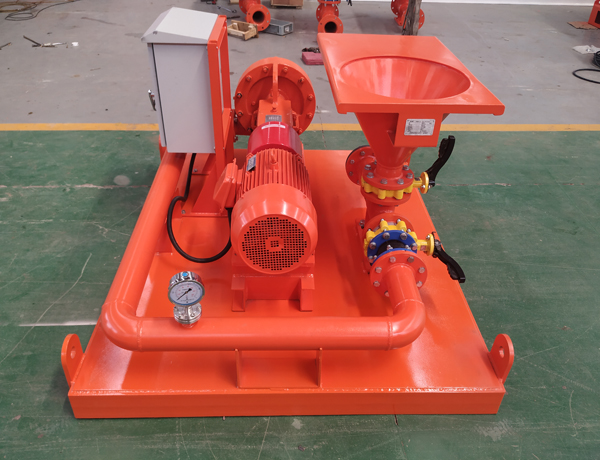

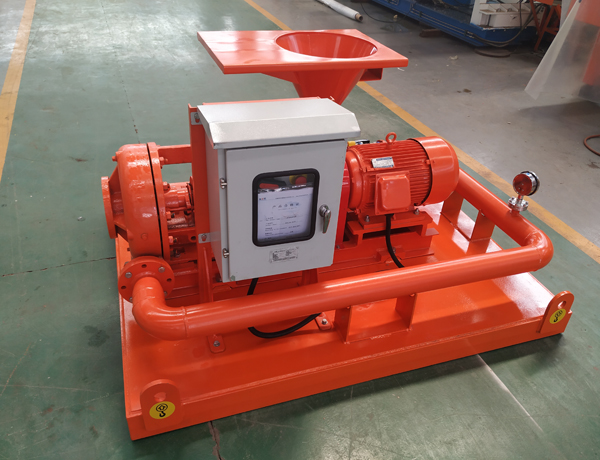

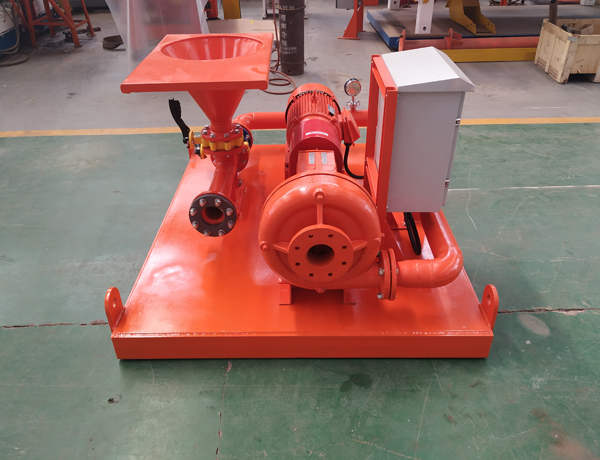

Jet Mud mixer is designed to mixing the barite or bentonite into the drilling fluids and adjust the mud density / mud viscosity to fulfill the drilling target. Single Jet Mud mixer is composed of one set centrifugal pump, one set mixing hopper (verturi hopper) and one set electrical control panel. (The pump control can also design into system control panel). Double Jet Mud Mixer is composed of double pumps and double hoppers, connected by manifold valves and hoses to achieve large mixing capacity target.
According to the job request, the Jet Mud mixer can be used to mixing barite to increase the drilling mud density; Also, Jet Mud mixer can be used to mixing bentonite to increase the drilling mud viscosity. KES Separation Jet Mud mixer can be used to work for oil & gas drilling mud system, HDD mud cleaning system, TBM mud purification system, Pipe jacking mud plant etc.
Technical Parameters of Jet Mud mixer
| Model | Flow(m3/h) | Motor power(kw) | Inlet / outlet | Weight (kg) | Dimension（mm） |
| KSSL-045 | 45 | 11 | DN100 / DN100 | 977 | 1850x1540x950 |
| KSSL-055 | 55 | 15 | DN100 / DN100 | 997 | 1850x1540x950 |
| KSSL-065 | 65 | 18.5 | DN100 / DN100 | 1045 | 1850x1540x950 |
| KSSL-090 | 90 | 22 | DN125 / DN100 | 1136 | 1850x1540x930 |
| KSSL-120 | 120 | 30 | DN125 / DN150 | 1340 | 2200x1840x1020 |
| KSSL-150 | 150 | 37 | DN150 / DN150 | 1492 | 2200x1840x1060 |
| KSSL-200 | 200 | 45 | DN150 / DN150 | 1582 | 2200x1840x1060 |
| KSSL-272 | 272 | 55 | DN200 / DN150 | 1732 | 2200x1840x1020 |
| KSSL-320 | 320 | 75 | DN200 / DN150 | 2062 | 2200x1840x1070 |
Technical Features of Jet Mud mixer
Working pressure range: 0.25~0.4 Mpa
Both Ex-proof / Non Ex-proof standard available;
Ex-proof standard can choose EXdIIBt4/IEC/ATEX for option
Centrifugal pump is interchangeable with NOV Mission pump, help customer to source the spares locally
High precision machining pump with anti-wearing production material help to get better performance
High quality mechanical seal to prevent pump leakage and reduce the maintenance
Top brand bearing for the centrifugal pump, stable operation with longer service life
Mixing unit with DNV2.7-1 Certificate SKID for option.
3 layers Marine anti-corrosion paintings is for option
Mixing Funnel is part of mixing system working together with centrifugal pump. The funnel can be produced by carbon steel or stainless steel. Additional valves can be designed on the funnel to achieve special requirement.
Technical Parameters of Mixing Funnel
| Model | KLD-150S | KLD1-2 |
| Flow rate (m3/h) | 240 | 180 |
| Work Pressure(Mpa) | 0.25-0.45 | 0.25-0.45 |
| Funnel Diameter (mm) | 620 | 708 |
| Inlet/Outlet Diameter (mm) | 150 / 150 | 150 / 150 |
| Mixing Pump Power (kw) | 55 | 55 |
| Solid Phase Mixing Capacity | Barite 14000kg/h
Bentonite 14968kg/h Calcium Chloride 10080kg/h Calcium Carbonate 11422kg/h |
Barite 300kg/h
Bentonite 150kg/h |
| Liquid Inhalation Capacity | 25m3/h
similar to the chemical liquid of water |
N/A |
| Weight (kg) | 265 | 185 |
| Dimension (mm) | 1250×752×1000 | 1518×708×980 |
Technical Features of Mixing Funnel
KLD-150S mixing unit is equivalent to SWACO Hiride Eductor. KLD-150S integrates a proprietary
minimum pressure drop (MPD) nozzle and unique trimix diffuser (TMD) into an easily installed, rugged,
Stainless steel frame which has been designed to an optimal height for improved ergonomics.
Equipped with wear resistant imported PU material
Rapid complete mixing of dry or liquid additives into the fluids system
Lowest comparable pressure loss
Creates high shear rates in a circulating loop
Compact design with smaller footprint, ideal for rigs where space is at a premium
Dust free, dry product mixing
Minimize “ fish eyes ” in hard to mix products
Flexible design eliminates extra equipment
Greater degree of worker safety
